    真空帶式過濾機

    發布時間:2024-03-15 10:47:53 信息來源:本站 閱讀次數: 0 次

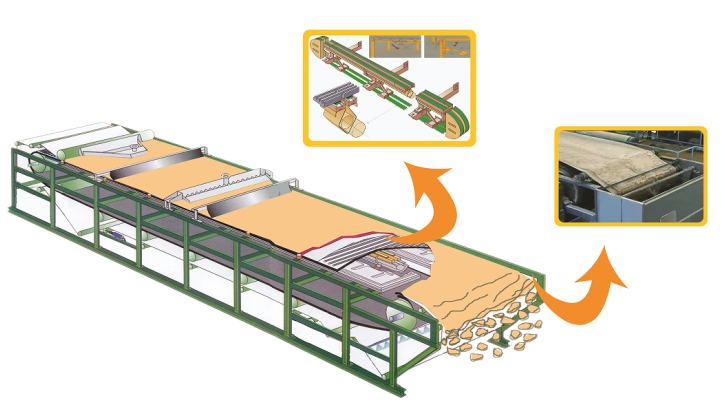

    產品結構 product mix

    橡膠帶式真空過濾機是一種以真空負壓為推動力實現固液分離的設備。真空負壓(0.04-0.07MPa)的作用下,懸浮液中的液體透過過濾介質(濾布)被抽走,而固體顆粒則被介質所截留,從而實現液體和固體的分離。其在結構上過濾區段沿水平長度方向布置,可以連續完成過濾、洗滌、吸干、濾布再生等作業。

    Rubber belt vacuum filter is a device that realizes solid-liquid separation with vacuum negative pressure as the driving force. Under the action of vacuum negative pressure (0.04-0.07MPa), the liquid in the suspension is pumped out through the filter medium (filter cloth), while the solid particles are intercepted by the medium, thus realizing the separation of liquid and solid. The filtering section is arranged along the horizontal length direction in the structure, which can continuously complete filtering, washing, drying, filter cloth regeneration and other operations.


    技術特點Technical characteristics

    1、整體結構模塊化設計,可靈活組裝,便于運輸和安裝。

    The modular design of the overall structure can be flexibly assembled and convenient for transportation and installation.

    2、自動化程度高;下料、過濾、洗滌、吸干、卸料、濾布清洗均為連續自動化,提高生產效率,24小時全自動運行,降低運行成本,減輕工人勞動強度,改善工作環境。

    High degree of automation; The blanking, filtering, washing, drying, unloading and filter cloth cleaning are all continuous automation, which improves the production efficiency and reduces the operation cost, greatly reduces the labor intensity of workers and improves the working environment.



    3、過濾速度快;物料通過沉淀區,大顆粒在底層,小顆粒在上層,濾餅結構合理,濾液通透阻力小,可進行薄層快速過濾。適合較高濃度、粗顆粒的過濾,是脫水處理中使用較為廣泛的機型。

    Fast filtration speed; The material passes through the sedimentation zone, with large particles at the bottom and small particles at the top. The filter cake structure is reasonable, and the filtrate permeability resistance is small, which can be used for thin layer rapid filtration. It is suitable for filtration of high concentration and coarse particles, and is widely used in dehydration treatment.

    4、洗滌效果好;可實現多級平流或逆流洗滌,洗滌均勻徹底,母液和洗滌液根據工藝需要可分別收集和再利用。

    Good washing effect; Multi-stage horizontal or countercurrent washing can be realized, and the washing is uniform and thorough. The mother liquor and washing liquor can be collected and reused separately according to the process needs.

    5、控制系統應用了DCS技術,可實現現場和遠程自動控制。

    DCS technology is applied in the control system to realize on-site and remote automatic control.

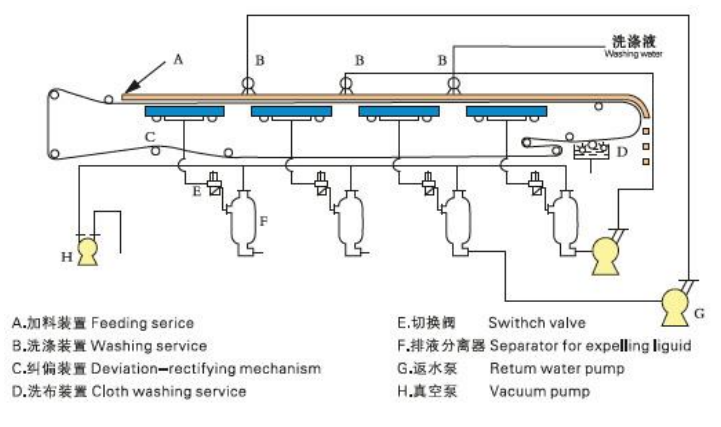

    局部結構:Local structure:

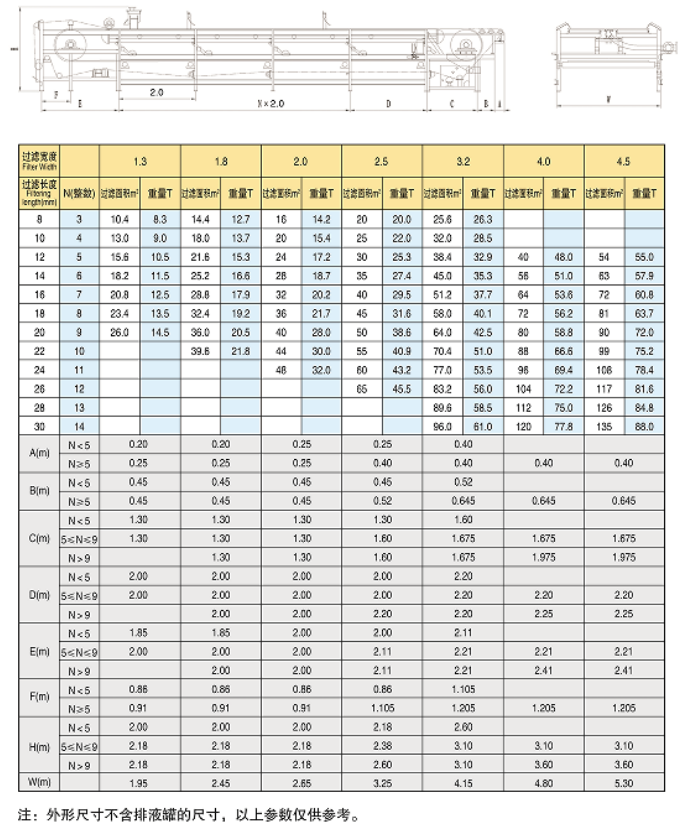

    選型技術參數





    應用范圍Scope of application



    真空帶式過濾機主要應用于鐵粉渣脫水,鐵精粉脫水,銅精粉脫水,螢石粉脫水,長石粉脫水,石英砂脫水,磁鐵礦脫水,硫鐵礦脫水,銅精礦脫水,鐵尾礦脫水,精鐵礦脫水,錳礦脫水,粉煤灰脫水,硫鐵礦脫水,金精礦脫水,金尾礦脫水,熱電廠脫硫石膏脫水等等各種60-150目物料。

    Vacuum belt filter is mainly used for iron powder slag dehydration, iron concentrate dewatering, copper concentrate dewatering, fluorite powder dewatering, feldspar powder dewatering, quartz sand dewatering, magnetite dewatering, pyrite dewatering, copper concentrate dewatering, iron tailings dewatering, refined iron ore dewatering, manganese ore dewatering, pulverized coal ash dewatering, pyrite dewatering, gold concentrate dewatering, gold tailings dewatering, thermal power plant desulfurization gypsum dewatering and other 60-150 mesh materials.

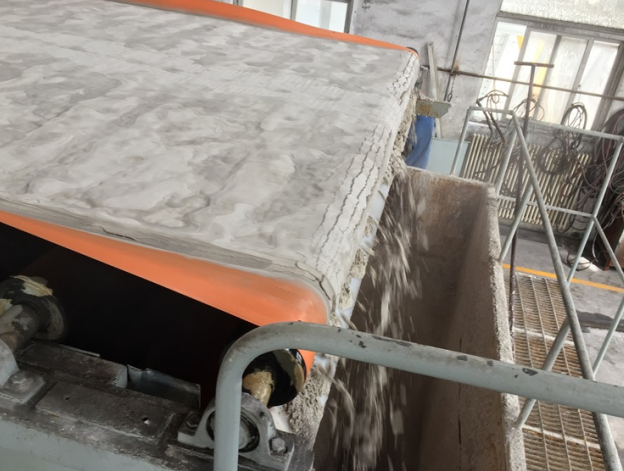

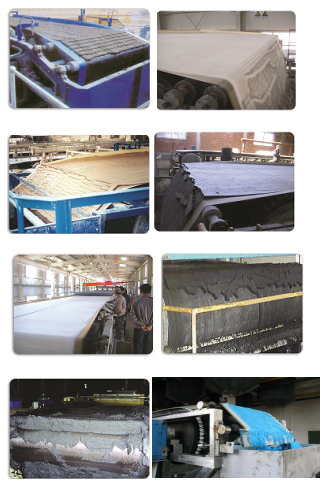

    使用現場Use site
